•  2200 CAROLINA BAY  •

pics01 pics02 pics03 pics04 pics05 pics06 pics07

    Centerline :: 22' 4"

    Beam :: 8' 6"

    Weight :: 2400 lbs.

    Fuel Capacity :: 56 gal.

    Max HP :: 250 HP

    Rec. HP :: 150 HP

    Transom Height :: 25"

    Deadrise at Transom :: 15°

    Appox. Draft :: 9"

    Cockpit Depth :: 18.5

The 2200 Carolina Bay has the same large casting deck and big bow flair as the 2000 and has cast net storage in the floor, fold up jump seats and 7 foot rod storage. The 2200 is a impressive riding bay boat that can handle big water.

Download the 2200 Carolina Bay Yamaha Performance Bulletin

Download the 2200 Carolina Bay Specification Sheet

View our next boat model

Back to our models


Sky Blue
Bimini Blue
Fusion Blue
Carbon Grey
Island Green


Battery Wired to Console
BayStar Plus Hydraulic Steering
Bow / Stern Casting Chair
Bow Cushions
Bow Lift Ring
Charger System 12-24V
Dual Battery Switch
Fold-Down Grab Rail
Fwd Jump Seat Cushions
Fresh Water Shower
SeaStar Hydraulic Steering Upgrade
Power Assist Steering
T-H Atlas Hydraulic Jack Plate
Manual Jack Plate
Leaning Post with Backrest
Leaning Post with no Backrest
Leaning Post Powder Coatin
Leaning Post w/Removable Backrest
Porta Potti
Pull Up Cleat (5 Standard)
Raw Water Wash Down
Stainless Steel Flip Flop Seat (94qt)
Stainless Steel Anchor Roller
Swim Platform (Fiberglass 2 Step)
Extra Stainless Steel Rod Holder
Stereo - Fusion w/4 Speakers
Polk BluTooth Stereo w/4 Speakers
T-Top w/Electronic Box, Spreader Lights, FG (AI)
T-Top w/Electronic Box, Spreader Lights, FG PC
T-Top w/Electronic Box, Spreader Lights, Canvas (AI)
T-Top w/Electronic Box, Spreader Lights, Canvas PC
T-Top Life Jacket Net (HT Only)
T-Top Mister + Fresh Water
Trim Tabs
Trim Tabs Indicators
Tackle Box
Tilt Steering
Troll Motor Plug
Trolling Motor 80#
Trolling Motor 101# 36V
Underwater Lights
Lewmar Free-Fall Windlass Inc +AR
Maserator Pump for 250 Floor Box
Removeable Bow Backrest

Pkg 1: Compass & Swim Platform
Pkg 2: Compass, Swim Platform & Raw Water Wash
Pkg 3: Compass, Swim Platform & Dual Battery Switch
Pkg 4: Lg Console w/Flip Flop Seat
Pkg 5: Lg Console w/Leaning Post

Bimini Top (Silver/Canvas) w/SS Hardware
Console Cover
Mooring Cover (N/A w/T-Tops)
T-Top Spray Shield
Gull Wings
Yam Command-Link Square
Command Link Monitor
Garmin 441
Garmin 541
Garmin 740


No Wood Construction
10-year Transferable Hull Warranty
Hand-Laid Fiberglass Hull
Foam Flotation
Fiberglass Stringer System
Self-Bailing Cock Pit
Automatic Bilge Pump
Aluminum Backing Plates
Navigational Lighting
Vinylester Barrier Coat
56 Gallon Built-In Gas Tank
Forward Casting deck
Rear Casting Deck
30 & 12 gallon Aerated Live Well w/ Thru Hull Pickup
Fish Box
Center Console includes:
    Plexiglas Windscreen
    Gauge Panel (Yamaha)
    Drink Holders
Stainless Steel Thru Hulls
Stainless Steel Rub Rail
Stainless Steel Steering Wheel w/knob
Stainless Steel Hardware
Stainless Steel Bow Rail
Stainless Steel Rod Holders
Recessed Rod Holders
Vertical Rod Holders

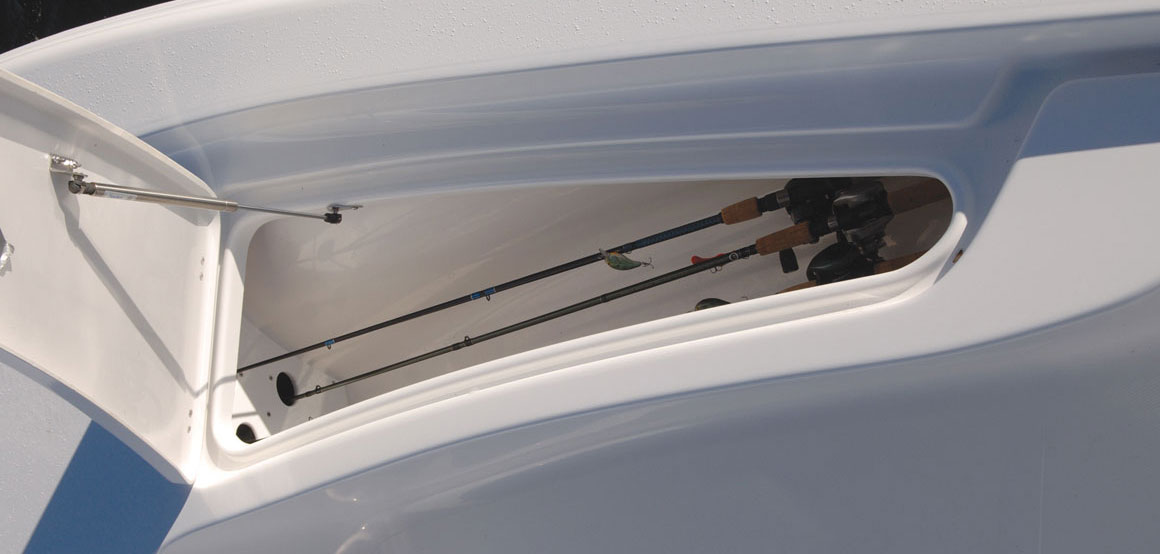

Lockable Rod Storage/8 rods
Cast Net Storage in Floor
Flip Flop Helm Seat
Troll Motor Plug
Anchor Storage
Forward Console Seat
LED Lighted Livewell
Cockpit Courtesy Lights
Fiberglass Hatches
Lockable Electric Box
Flip Up Rear Seats
Pull Up Cleats
